Elevator systems rely on multiple electrical components to operate safely and efficiently. One of the most critical yet often overlooked parts is the elevator contactor.
If you are managing elevators in Muscat or anywhere in Oman, understanding contactors can help prevent unexpected shutdowns and costly repairs.
🔍 What Is an Elevator Contactor?
An elevator contactor is an electrically controlled switch used to manage power flow to major components such as:
- ● Elevator motors
- ● Door operators
- ● Inverters
- ● Brake systems
It allows safe switching of high-current circuits using low-power control signals.
⚙️ How Elevator Contactors Work
When the control panel sends a signal:
- 1. The contactor coil energizes
- 2. Magnetic force pulls contacts together
- 3. Power flows to the motor or system
- 4. When the signal stops, contacts open
This switching process happens thousands of times daily in busy buildings.
Common Causes of Contactor Failure

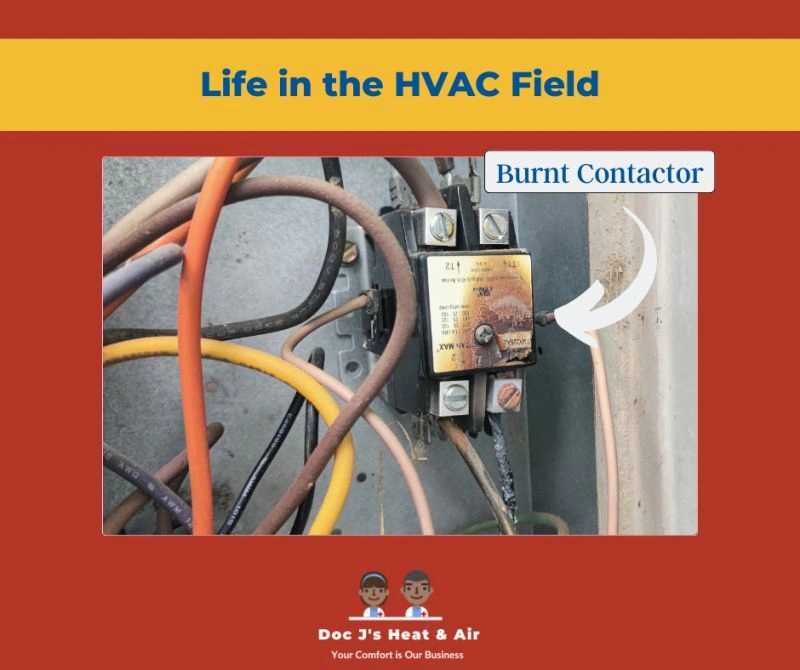

1️⃣ Electrical Arcing
Repeated switching causes sparks that wear out contact surfaces.

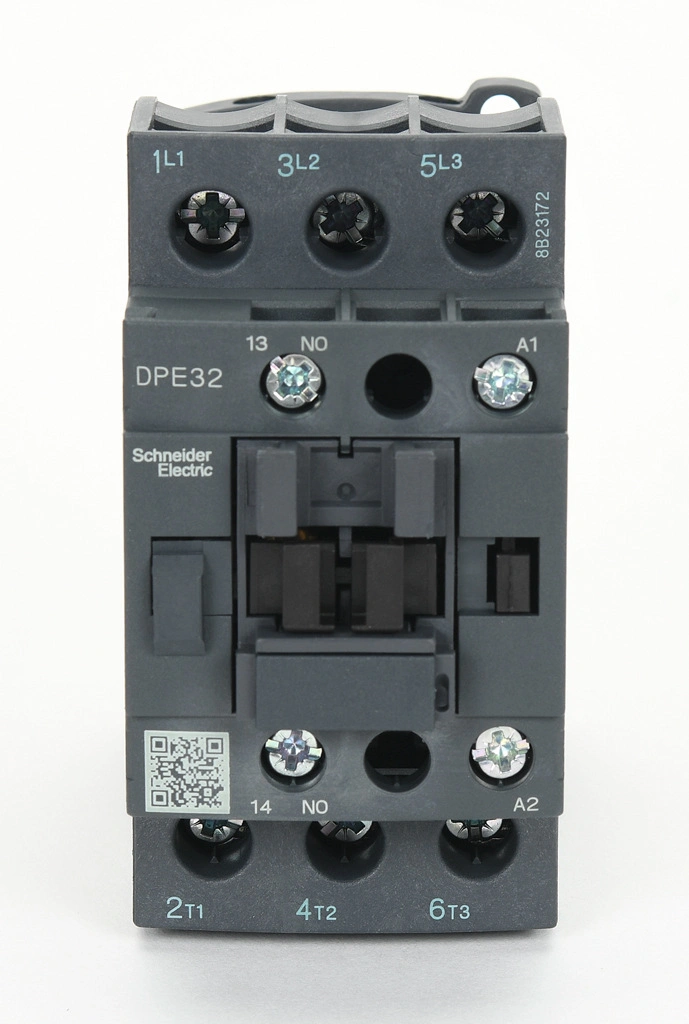

2️⃣ Overheating
Poor ventilation in control cabinets (common in hot climates like Oman) accelerates damage.
3️⃣ Coil Burnout
Voltage fluctuations can damage contactor coils.
4️⃣ Mechanical Wear
Moving parts degrade over time.
Signs Your Elevator Contactor Is Failing
- ● Elevator stops intermittently
- ● Loud clicking sounds
- ● Burn smell from control panel
- ● Elevator not responding
- ● Visible burnt contacts
If ignored, a faulty contactor can damage motors or inverters.

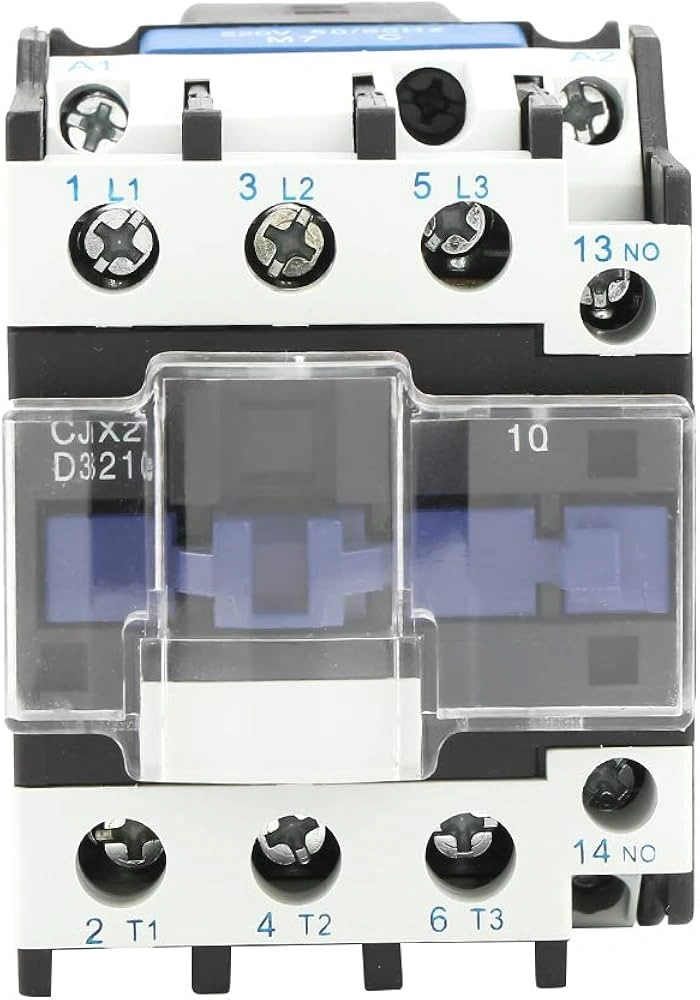

When to Replace Elevator Contactors
Replace immediately if:
- ● Contacts are heavily pitted or burnt
- ● Coil resistance is abnormal
- ● Switching is inconsistent
- ● Heat damage is visible
Never use low-grade replacements — electrical switching components must meet safety standards.
Compatible Brands in Oman
Many elevators in Oman operate using systems from:
- ● KONE
- ● Otis
- ● Mitsubishi Electric
- ● Schindler
Always confirm voltage and current ratings before replacing contactors.
Conclusion
Elevator contactors are small but essential components that directly affect reliability and safety. Regular inspection and high-quality replacements prevent major system failures.
SkyLink Trading supplies certified elevator electrical components across Oman with fast delivery in Muscat.
